Python and the Pandas¶
Overview¶
This chapter provides an introduction to data science and the Python programming language. The goal here is to get your hands dirty right from the start! We will walk through an entire data analysis, and along the way introduce different types of data analysis question, some fundamental programming concepts in Python, and the basics of loading, cleaning, and visualizing data. In the following chapters, we will dig into each of these steps in much more detail; but for now, let’s jump in to see how much we can do with data science!
Chapter learning objectives¶
By the end of the chapter, readers will be able to do the following:
Identify the different types of data analysis question and categorize a question into the correct type.
Load the
pandaspackage into Python.Read tabular data with
read_csv.Use

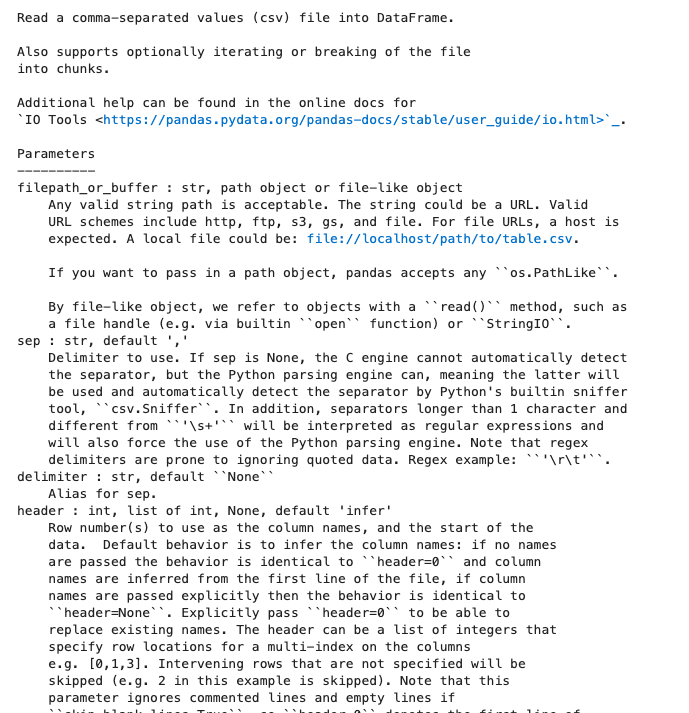

help()to access help and documentation tools in Python.Create new variables and objects in Python.
Do indexing and slicing with
.loc[]and.iloc[]properties.Select columns of a dataframe using df[] notation.
Visualize data with an
altairbar plot.
Canadian languages data set¶
In this chapter, \index{Canadian languages} we will walk through a full analysis of a data set relating to languages spoken at home by Canadian residents. Many Indigenous peoples exist in Canada with their own cultures and languages; these languages are often unique to Canada and not spoken anywhere else in the world [@statcan2018mothertongue]. Sadly, colonization has led to the loss of many of these languages. For instance, generations of children were not allowed to speak their mother tongue (the first language an individual learns in childhood) in Canadian residential schools. Colonizers also renamed places they had “discovered” [@wilson2018]. Acts such as these have significantly harmed the continuity of Indigenous languages in Canada, and some languages are considered “endangered” as few people report speaking them. To learn more, please see Canadian Geographic’s article, “Mapping Indigenous Languages in Canada” [@walker2017], They Came for the Children: Canada, Aboriginal peoples, and Residential Schools [@children2012] and the Truth and Reconciliation Commission of Canada’s Calls to Action [@calls2015].
The data set we will study in this chapter is taken from
the canlang R data package
[@timbers2020canlang], which has
population language data collected during the 2016 Canadian census [@cancensus2016].
In this data, there are 214 languages recorded, each having six different properties:
category: Higher-level language category, describing whether the language is an Official Canadian language, an Aboriginal (i.e., Indigenous) language, or a Non-Official and Non-Aboriginal language.language: The name of the language.mother_tongue: Number of Canadian residents who reported the language as their mother tongue. Mother tongue is generally defined as the language someone was exposed to since birth.most_at_home: Number of Canadian residents who reported the language as being spoken most often at home.most_at_work: Number of Canadian residents who reported the language as being used most often at work.lang_known: Number of Canadian residents who reported knowledge of the language.
According to the census, more than 60 Aboriginal languages were reported as being spoken in Canada. Suppose we want to know which are the most common; then we might ask the following question, which we wish to answer using our data:
Which ten Aboriginal languages were most often reported in 2016 as mother tongues in Canada, and how many people speak each of them?
Note: Data science\index{data science!good practices} cannot be done without a deep understanding of the data and problem domain. In this book, we have simplified the data sets used in our examples to concentrate on methods and fundamental concepts. But in real life, you cannot and should not do data science without a domain expert. Alternatively, it is common to practice data science in your own domain of expertise! Remember that when you work with data, it is essential to think about how the data were collected, which affects the conclusions you can draw. If your data are biased, then your results will be biased!
Asking a question¶
Every good data analysis begins with a question—like the above—that you aim to answer using data. As it turns out, there are actually a number of different types of question regarding data: descriptive, exploratory, inferential, predictive, causal, and mechanistic, all of which are defined in Table 1. [@leek2015question; @peng2015art] Carefully formulating a question as early as possible in your analysis—and correctly identifying which type of question it is—will guide your overall approach to the analysis as well as the selection of appropriate tools.\index{question!data analysis} \index{descriptive question!definition} \index{exploratory question!definition} \index{predictive question!definition} \index{inferential question!definition} \index{causal question!definition} \index{mechanistic question!definition}
Question type |
Description |
Example |
|---|---|---|
Descriptive |
A question that asks about summarized characteristics of a data set without interpretation (i.e., report a fact). |
How many people live in each province and territory in Canada? |
Exploratory |
A question that asks if there are patterns, trends, or relationships within a single data set. Often used to propose hypotheses for future study. |
Does political party voting change with indicators of wealth in a set of data collected on 2,000 people living in Canada? |
Predictive |
A question that asks about predicting measurements or labels for individuals (people or things). The focus is on what things predict some outcome, but not what causes the outcome. |
What political party will someone vote for in the next Canadian election? |
Inferential |
A question that looks for patterns, trends, or relationships in a single data set and also asks for quantification of how applicable these findings are to the wider population. |
Does political party voting change with indicators of wealth for all people living in Canada? |
Causal |
A question that asks about whether changing one factor will lead to a change in another factor, on average, in the wider population. |
Does wealth lead to voting for a certain political party in Canadian elections? |
Mechanistic |
A question that asks about the underlying mechanism of the observed patterns, trends, or relationships (i.e., how does it happen?) |
How does wealth lead to voting for a certain political party in Canadian elections? |
In this book, you will learn techniques to answer the first four types of question: descriptive, exploratory, predictive, and inferential; causal and mechanistic questions are beyond the scope of this book. In particular, you will learn how to apply the following analysis tools:
Summarization: \index{summarization!overview} computing and reporting aggregated values pertaining to a data set. Summarization is most often used to answer descriptive questions, and can occasionally help with answering exploratory questions. For example, you might use summarization to answer the following question: What is the average race time for runners in this data set? Tools for summarization are covered in detail in Chapters @ref(reading) and @ref(wrangling), but appear regularly throughout the text.
Visualization: \index{visualization!overview} plotting data graphically. Visualization is typically used to answer descriptive and exploratory questions, but plays a critical supporting role in answering all of the types of question in Table 1. For example, you might use visualization to answer the following question: Is there any relationship between race time and age for runners in this data set? This is covered in detail in Chapter @ref(viz), but again appears regularly throughout the book.
Classification: \index{classification!overview} predicting a class or category for a new observation. Classification is used to answer predictive questions. For example, you might use classification to answer the following question: Given measurements of a tumor’s average cell area and perimeter, is the tumor benign or malignant? Classification is covered in Chapters @ref(classification) and @ref(classification2).
Regression: \index{regression!overview} predicting a quantitative value for a new observation. Regression is also used to answer predictive questions. For example, you might use regression to answer the following question: What will be the race time for a 20-year-old runner who weighs 50kg? Regression is covered in Chapters @ref(regression1) and @ref(regression2).
Clustering: \index{clustering!overview} finding previously unknown/unlabeled subgroups in a data set. Clustering is often used to answer exploratory questions. For example, you might use clustering to answer the following question: What products are commonly bought together on Amazon? Clustering is covered in Chapter @ref(clustering).
Estimation: \index{estimation!overview} taking measurements for a small number of items from a large group and making a good guess for the average or proportion for the large group. Estimation is used to answer inferential questions. For example, you might use estimation to answer the following question: Given a survey of cellphone ownership of 100 Canadians, what proportion of the entire Canadian population own Android phones? Estimation is covered in Chapter @ref(inference).
Referring to Table 1, our question about Aboriginal languages is an example of a descriptive question: we are summarizing the characteristics of a data set without further interpretation. And referring to the list above, it looks like we should use visualization and perhaps some summarization to answer the question. So in the remainder of this chapter, we will work towards making a visualization that shows us the ten most common Aboriginal languages in Canada and their associated counts, according to the 2016 census.
Loading a tabular data set¶
A data set is, at its core essence, a structured collection of numbers and characters. Aside from that, there are really no strict rules; data sets can come in many different forms! Perhaps the most common form of data set that you will find in the wild, however, is tabular data\index{tabular data}. Think spreadsheets in Microsoft Excel: tabular data are rectangular-shaped and spreadsheet-like, as shown in Fig. 1. In this book, we will focus primarily on tabular data.
Since we are using Python for data analysis in this book, the first step for us is to load the data into Python. When we load tabular data into Python, it is represented as a data frame object\index{data frame!overview}. Fig. 1 shows that an Python data frame is very similar to a spreadsheet. We refer to the rows as \index{observation} observations; these are the things that we collect the data on, e.g., voters, cities, etc. We refer to the columns as \index{variable} variables; these are the characteristics of those observations, e.g., voters’ political affiliations, cities’ populations, etc.

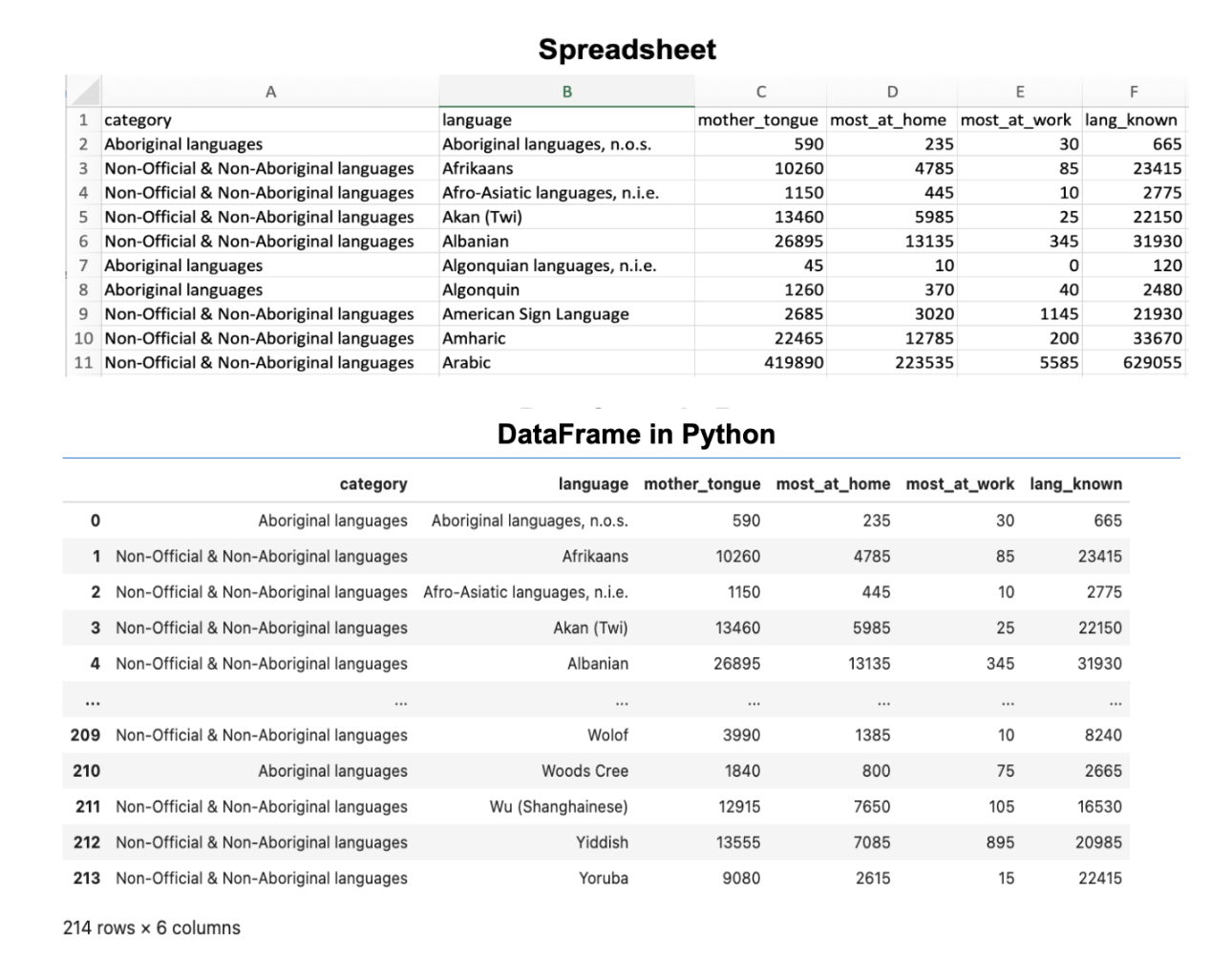

Fig. 1 A spreadsheet versus a data frame in Python¶
The first kind of data file that we will learn how to load into Python as a data
frame is the comma-separated values format (.csv for short)\index{comma-separated values|see{csv}}\index{csv}. These files
have names ending in .csv, and can be opened and saved using common
spreadsheet programs like Microsoft Excel and Google Sheets. For example, the
.csv file named can_lang.csv
is included with the code for this book.
If we were to open this data in a plain text editor (a program like Notepad that just shows
text with no formatting), we would see each row on its own line, and each entry in the table separated by a comma:
category,language,mother_tongue,most_at_home,most_at_work,lang_known
Aboriginal languages,"Aboriginal languages, n.o.s.",590,235,30,665
Non-Official & Non-Aboriginal languages,Afrikaans,10260,4785,85,23415
Non-Official & Non-Aboriginal languages,"Afro-Asiatic languages, n.i.e.",1150,44
Non-Official & Non-Aboriginal languages,Akan (Twi),13460,5985,25,22150
Non-Official & Non-Aboriginal languages,Albanian,26895,13135,345,31930
Aboriginal languages,"Algonquian languages, n.i.e.",45,10,0,120
Aboriginal languages,Algonquin,1260,370,40,2480
Non-Official & Non-Aboriginal languages,American Sign Language,2685,3020,1145,21
Non-Official & Non-Aboriginal languages,Amharic,22465,12785,200,33670
To load this data into Python so that we can do things with it (e.g., perform
analyses or create data visualizations), we will need to use a function. \index{function} A
function is a special word in Python that takes instructions (we call these
arguments) \index{argument} and does something. The function we will use to load a .csv file
into Python is called read_csv. \index{read function!read_csv} In its most basic
use-case, read_csv expects that the data file:
has column names (or headers),
uses a comma (
,) to separate the columns, anddoes not have row names.
Below you’ll see the code used to load the data into Python using the read_csv
function. Note that the read_csv function is not included in the base
installation of Python, meaning that it is not one of the primary functions ready to
use when you install Python. Therefore, you need to load it from somewhere else
before you can use it. The place from which we will load it is called a Python package.
A Python package \index{package} is a collection of functions that can be used in addition to the
built-in Python package functions once loaded. The read_csv function, in
particular, can be made accessible by loading
the pandas Python package [@tidyverse; @wickham2019tidverse]
using the import command. \index{library} The pandas \index{tidyverse} package contains many
functions that we will use throughout this book to load, clean, wrangle,
and visualize data.
import pandas as pd
After loading the pandas package and accessing it using the alias pd, we can call the read_csv function and
pass it a single argument: the name of the file, "can_lang.csv". We have to
put quotes around file names and other letters and words that we use in our
code to distinguish it from the special words (like functions!) that make up the Python programming
language. The file’s name is the only argument we need to provide because our
file satisfies everything else that the read_csv function expects in the default
use-case. Fig. 2 describes how we use the read_csv
to read data into Python.

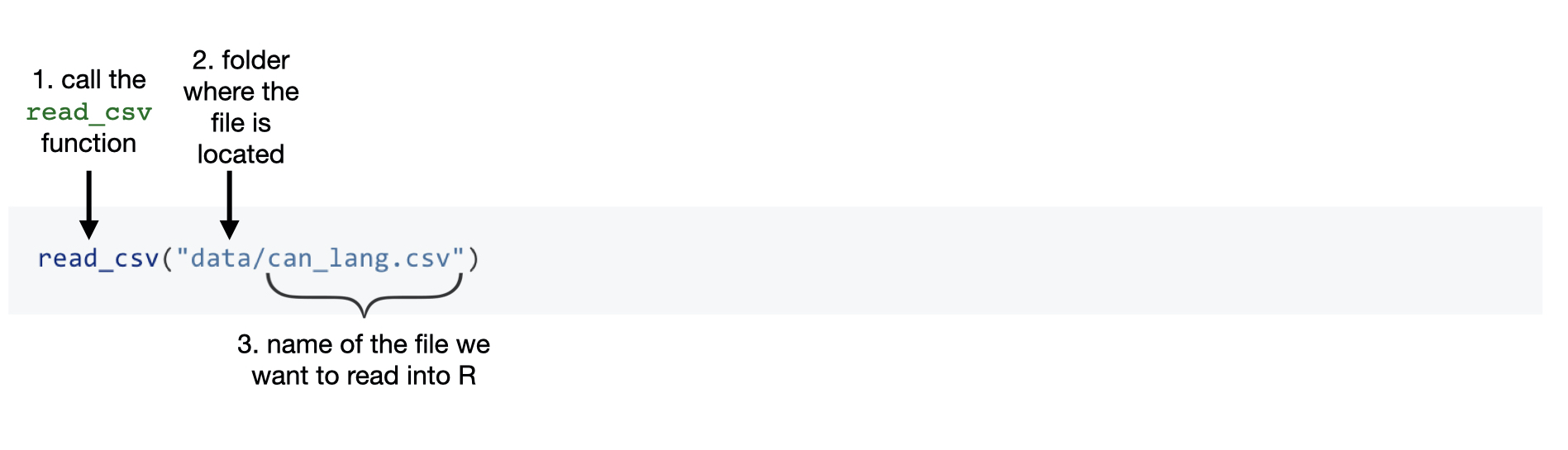

(ref:img-read-csv) Syntax for the read_csv function.
Fig. 2 Syntax for the read_csv function¶
pd.read_csv("data/can_lang.csv")
| category | language | mother_tongue | most_at_home | most_at_work | lang_known | |
|---|---|---|---|---|---|---|
| 0 | Aboriginal languages | Aboriginal languages, n.o.s. | 590 | 235 | 30 | 665 |
| 1 | Non-Official & Non-Aboriginal languages | Afrikaans | 10260 | 4785 | 85 | 23415 |
| 2 | Non-Official & Non-Aboriginal languages | Afro-Asiatic languages, n.i.e. | 1150 | 445 | 10 | 2775 |
| 3 | Non-Official & Non-Aboriginal languages | Akan (Twi) | 13460 | 5985 | 25 | 22150 |
| 4 | Non-Official & Non-Aboriginal languages | Albanian | 26895 | 13135 | 345 | 31930 |
| ... | ... | ... | ... | ... | ... | ... |
| 209 | Non-Official & Non-Aboriginal languages | Wolof | 3990 | 1385 | 10 | 8240 |
| 210 | Aboriginal languages | Woods Cree | 1840 | 800 | 75 | 2665 |
| 211 | Non-Official & Non-Aboriginal languages | Wu (Shanghainese) | 12915 | 7650 | 105 | 16530 |
| 212 | Non-Official & Non-Aboriginal languages | Yiddish | 13555 | 7085 | 895 | 20985 |
| 213 | Non-Official & Non-Aboriginal languages | Yoruba | 9080 | 2615 | 15 | 22415 |
214 rows × 6 columns
Naming things in Python¶
When we loaded the 2016 Canadian census language data
using read_csv, we did not give this data frame a name.
Therefore the data was just printed on the screen,
and we cannot do anything else with it. That isn’t very useful.
What would be more useful would be to give a name
to the data frame that read_csv outputs,
so that we can refer to it later for analysis and visualization.
The way to assign a name to a value in Python is via the assignment symbol =.
\index{aaaassignsymb@\texttt{<-}|see{assignment symbol}}\index{assignment symbol}
On the left side of the assignment symbol you put the name that you want
to use, and on the right side of the assignment symbol
you put the value that you want the name to refer to.
Names can be used to refer to almost anything in Python, such as numbers,
words (also known as strings of characters), and data frames!
Below, we set my_number to 3 (the result of 1+2)
and we set name to the string "Alice". \index{string}
my_number = 1 + 2
print(my_number)
name = "Alice"
print(name)
3
Alice
Note that when
we name something in Python using the assignment symbol, =,
we do not need to surround the name we are creating with quotes. This is
because we are formally telling Python that this special word denotes
the value of whatever is on the right-hand side.
Only characters and words that act as values on the right-hand side of the assignment
symbol—e.g., the file name "data/can_lang.csv" that we specified before, or "Alice" above—need
to be surrounded by quotes.
After making the assignment, we can use the special name words we have created in
place of their values. For example, if we want to do something with the value 3 later on,
we can just use my_number instead. Let’s try adding 2 to my_number; you will see that
Python just interprets this as adding 2 and 3:
my_number + 2
5
Object names \index{object} can consist of letters, numbers, periods . and underscores _.
Other symbols won’t work since they have their own meanings in Python. For example,
+ is the addition symbol(operator); if we try to assign a name with
the + symbol, Python will complain and we will get an error!
na+me = 1
SyntaxError: cannot assign to operator
There are certain conventions for naming objects in Python.
When naming \index{object!naming convention} an object we
suggest using only lowercase letters, numbers and underscores _ to separate
the words in a name. Python is case sensitive, which means that Letter and
letter would be two different objects in Python. You should also try to give your
objects meaningful names. For instance, you can name a data frame x.
However, using more meaningful terms, such as language_data, will help you
remember what each name in your code represents. We recommend following the
PEP 8 naming conventions outlined in the PEP 8 [@tidyversestyleguide]. Let’s
now use the assignment symbol to give the name
can_lang to the 2016 Canadian census language data frame that we get from
read_csv.
can_lang = pd.read_csv("data/can_lang.csv")
Wait a minute, nothing happened this time! Where’s our data?
Actually, something did happen: the data was loaded in
and now has the name can_lang associated with it.
And we can use that name to access the data frame and do things with it.
For example, we can type the name of the data frame to print the first few rows
on the screen. You will also see at the top that the number of observations (i.e., rows) and
variables (i.e., columns) are printed. Printing the first few rows of a data frame
like this is a handy way to get a quick sense for what is contained in a data frame.
can_lang
| category | language | mother_tongue | most_at_home | most_at_work | lang_known | |
|---|---|---|---|---|---|---|
| 0 | Aboriginal languages | Aboriginal languages, n.o.s. | 590 | 235 | 30 | 665 |
| 1 | Non-Official & Non-Aboriginal languages | Afrikaans | 10260 | 4785 | 85 | 23415 |
| 2 | Non-Official & Non-Aboriginal languages | Afro-Asiatic languages, n.i.e. | 1150 | 445 | 10 | 2775 |
| 3 | Non-Official & Non-Aboriginal languages | Akan (Twi) | 13460 | 5985 | 25 | 22150 |
| 4 | Non-Official & Non-Aboriginal languages | Albanian | 26895 | 13135 | 345 | 31930 |
| ... | ... | ... | ... | ... | ... | ... |
| 209 | Non-Official & Non-Aboriginal languages | Wolof | 3990 | 1385 | 10 | 8240 |
| 210 | Aboriginal languages | Woods Cree | 1840 | 800 | 75 | 2665 |
| 211 | Non-Official & Non-Aboriginal languages | Wu (Shanghainese) | 12915 | 7650 | 105 | 16530 |
| 212 | Non-Official & Non-Aboriginal languages | Yiddish | 13555 | 7085 | 895 | 20985 |
| 213 | Non-Official & Non-Aboriginal languages | Yoruba | 9080 | 2615 | 15 | 22415 |
214 rows × 6 columns
Creating subsets of data frames with df[] & loc[]¶
Now that we’ve loaded our data into Python, we can start wrangling the data to
find the ten Aboriginal languages that were most often reported
in 2016 as mother tongues in Canada. In particular, we will construct
a table with the ten Aboriginal languages that have the largest
counts in the mother_tongue column.
The df[] and loc[] properties of the pandas dataframe will help us
here. The df[] \index{filter} property allows you to obtain a subset of the
rows with specific values, while the loc[] \index{select} property allows you
to obtain a subset of the columns. Therefore, we can use df[]
to filter the rows to extract the Aboriginal languages in the data set, and
then use loc[] property to obtain only the columns we want to include in our table.
Using df[] to extract rows¶
Looking at the can_lang data above, we see the column category contains different
high-level categories of languages, which include “Aboriginal languages”,
“Non-Official & Non-Aboriginal languages” and “Official languages”. To answer
our question we want to filter our data set so we restrict our attention
to only those languages in the “Aboriginal languages” category.
We can use the df[] \index{filter} property to obtain the subset of rows with desired
values from a data frame, where df[] is same as the data frame object you are using.
In our case it would be can_lang[]
The argument to can_lang[] is selection of column name category of the data frame
object, can_lang. The second argument is a logical statement \index{logical statement} to use when
filtering the rows with the logical statement evaluating to either TRUE or FALSE;
df[] keeps only those rows for which the logical statement evaluates to TRUE.
For example, in our analysis, we are interested in keeping only languages in the
“Aboriginal languages” higher-level category. We can use
the equivalency operator == \index{logical statement!equivalency operator} to compare the values
of the category column with the value "Aboriginal languages"; you will learn about
many other kinds of logical statements in Chapter @ref(wrangling). Similar to
when we loaded the data file and put quotes around the file name, here we need
to put quotes around "Aboriginal languages". Using quotes tells Python that this
is a string value \index{string} and not one of the special words that make up Python
programming language, or one of the names we have given to data frames in the
code we have already written.
With the logical filter statement inside df[], we get a data frame that has all the columns of
the input data frame, but only those rows we asked for in our logical filter
statement.
aboriginal_lang = can_lang[can_lang['category'] == 'Aboriginal languages']
aboriginal_lang
| category | language | mother_tongue | most_at_home | most_at_work | lang_known | |
|---|---|---|---|---|---|---|
| 0 | Aboriginal languages | Aboriginal languages, n.o.s. | 590 | 235 | 30 | 665 |
| 5 | Aboriginal languages | Algonquian languages, n.i.e. | 45 | 10 | 0 | 120 |
| 6 | Aboriginal languages | Algonquin | 1260 | 370 | 40 | 2480 |
| 12 | Aboriginal languages | Athabaskan languages, n.i.e. | 50 | 10 | 0 | 85 |
| 13 | Aboriginal languages | Atikamekw | 6150 | 5465 | 1100 | 6645 |
| ... | ... | ... | ... | ... | ... | ... |
| 191 | Aboriginal languages | Thompson (Ntlakapamux) | 335 | 20 | 0 | 450 |
| 195 | Aboriginal languages | Tlingit | 95 | 0 | 10 | 260 |
| 196 | Aboriginal languages | Tsimshian | 200 | 30 | 10 | 410 |
| 206 | Aboriginal languages | Wakashan languages, n.i.e. | 10 | 0 | 0 | 25 |
| 210 | Aboriginal languages | Woods Cree | 1840 | 800 | 75 | 2665 |
67 rows × 6 columns
It’s good practice to check the output after using a
function in Python. We can see the original can_lang data set contained 214 rows
with multiple kinds of category. The data frame
aboriginal_lang contains only 67 rows, and looks like it only contains languages in
the “Aboriginal languages” in the category column. So it looks like the df[] property
gave us the result we wanted!
Using .loc[] to extract columns¶
Now let’s use loc[] \index{select} to extract the language and mother_tongue columns
from this data frame. To extract these columns, we need to provide the loc[]
property with list of rows separated by list of columns i.e df.loc[[row1, row2, ...], [col1, col2, ...]]
As we want to access all the rows of the dataframe, instead of passing the names of all the rows,
we can instead just depict them using : and then pass a list of columns language and mother_tongue.
After passing these as arguments, the loc[] property
returns two columns (the language and mother_tongue columns that we asked
for) as a data frame.
selected_lang = aboriginal_lang.loc[:, ['language', 'mother_tongue']]
selected_lang
| language | mother_tongue | |
|---|---|---|
| 0 | Aboriginal languages, n.o.s. | 590 |
| 5 | Algonquian languages, n.i.e. | 45 |
| 6 | Algonquin | 1260 |
| 12 | Athabaskan languages, n.i.e. | 50 |
| 13 | Atikamekw | 6150 |
| ... | ... | ... |
| 191 | Thompson (Ntlakapamux) | 335 |
| 195 | Tlingit | 95 |
| 196 | Tsimshian | 200 |
| 206 | Wakashan languages, n.i.e. | 10 |
| 210 | Woods Cree | 1840 |
67 rows × 2 columns
Using sort_values to order and iloc[] to select rows by index number¶
We have used df[] and loc[] properties of dataframe to obtain a table with only the Aboriginal
languages in the data set and their associated counts. However, we want to know
the ten languages that are spoken most often. As a next step, we could
order the mother_tongue column from greatest to least and then extract only
the top ten rows. This is where the sort_values function and .iloc[] property come to the
rescue! \index{arrange}\index{slice}
The sort_values function allows us to order the rows of a data frame by the
values of a particular column. We need to specify the column name
by which we want to sort the dataframe by passing it to the argument by.
Since we want to choose the ten Aboriginal languages most often reported as a mother tongue
language, we will use the sort_values function to order the rows in our
selected_lang data frame by the mother_tongue column. We want to
arrange the rows in descending order (from largest to smallest),
so we specify the argument ascending as False.
arranged_lang = selected_lang.sort_values(by='mother_tongue', ascending=False)
arranged_lang
| language | mother_tongue | |
|---|---|---|
| 40 | Cree, n.o.s. | 64050 |
| 89 | Inuktitut | 35210 |
| 138 | Ojibway | 17885 |
| 137 | Oji-Cree | 12855 |
| 48 | Dene | 10700 |
| ... | ... | ... |
| 5 | Algonquian languages, n.i.e. | 45 |
| 32 | Cayuga | 45 |
| 179 | Squamish | 40 |
| 90 | Iroquoian languages, n.i.e. | 35 |
| 206 | Wakashan languages, n.i.e. | 10 |
67 rows × 2 columns
Next we will use the iloc[] property, which selects rows according to their
row number. Since we want to choose the most common ten languages, we will indicate we want the
rows 1 to 10 using the argument :10.
ten_lang = arranged_lang.iloc[:10]
ten_lang
| language | mother_tongue | |
|---|---|---|
| 40 | Cree, n.o.s. | 64050 |
| 89 | Inuktitut | 35210 |
| 138 | Ojibway | 17885 |
| 137 | Oji-Cree | 12855 |
| 48 | Dene | 10700 |
| 125 | Montagnais (Innu) | 10235 |
| 119 | Mi'kmaq | 6690 |
| 13 | Atikamekw | 6150 |
| 149 | Plains Cree | 3065 |
| 180 | Stoney | 3025 |
We have now answered our initial question by generating this table! Are we done? Well, not quite; tables are almost never the best way to present the result of your analysis to your audience. Even the simple table above with only two columns presents some difficulty: for example, you have to scrutinize the table quite closely to get a sense for the relative numbers of speakers of each language. When you move on to more complicated analyses, this issue only gets worse. In contrast, a visualization would convey this information in a much more easily understood format. Visualizations are a great tool for summarizing information to help you effectively communicate with your audience.
Exploring data with visualizations¶
Creating effective data visualizations \index{visualization} is an essential component of any data analysis. In this section we will develop a visualization of the ten Aboriginal languages that were most often reported in 2016 as mother tongues in Canada, as well as the number of people that speak each of them.
Using altair to create a bar plot¶
In our data set, we can see that language and mother_tongue are in separate
columns (or variables). In addition, there is a single row (or observation) for each language.
The data are, therefore, in what we call a tidy data format. Tidy data is a
fundamental concept and will be a significant focus in the remainder of this
book: many of the functions from pandas require tidy data, including the
altair \index{ggplot} package that we will use shortly for our visualization. We will
formally introduce tidy data in Chapter @ref(wrangling).
We will make a bar plot to visualize our data. A bar plot \index{plot|see{visualization}}\index{visualization|see{ggplot}}\index{visualization!bar} is a chart where the
heights of the bars represent certain values, like counts or proportions. We
will make a bar plot using the mother_tongue and language columns from our
ten_lang data frame. To create a bar plot of these two variables using the
altair package, we must specify the data frame, which variables
to put on the x and y axes, and what kind of plot to create.
First, we need to import the altair package.
import altair as alt
The fundamental object in Altair is the Chart, which takes a data frame as a single argument alt.Chart(ten_lang).
With a chart object in hand, we can now specify how we would like the data to be visualized.
We first indicate what kind of geometric mark we want to use to represent the data. We can set the mark attribute
of the chart object using the Chart.mark_* methods.
Here, as we want to plot the bar chart, so we will use mark_bar() method.
Next, we need to encode the fields of the data frame using
the x(represents the x-axis position of the points) and
y(represents the y-axis position of the points) channels. The encode()
method builds a key-value mapping between encoding channels (such as x, y)
to fields in the dataset, accessed by field name(column names)
barplot_mother_tongue = (
alt.Chart(ten_lang)
.mark_bar().encode(
x='language',
y='mother_tongue'
))
Fig. 3 Bar plot of the ten Aboriginal languages most often reported by Canadian residents as their mother tongue¶
Note: The vast majority of the time, a single expression in Python must be contained in a single line of code. However, there are a small number of situations in which you can have a single Python expression span multiple lines. Above is one such case: here, Python knows that a line cannot end with a
.symbol, \index{aaaplussymb@\(+\)|see{ggplot (add layer)}} and so it keeps reading the next line to figure out what the right-hand side of the.symbol should be. We could, of course, put all of the added layers on one line of code, but splitting them across multiple lines helps a lot with code readability. \index{multi-line expression}
Formatting altair objects¶
It is exciting that we can already visualize our data to help answer our
question, but we are not done yet! We can (and should) do more to improve the
interpretability of the data visualization that we created. For example, by
default, Python uses the column names as the axis labels. Usually these
column names do not have enough information about the variable in the column.
We really should replace this default with a more informative label. For the
example above, Python uses the column name mother_tongue as the label for the
y axis, but most people will not know what that is. And even if they did, they
will not know how we measured this variable, or the group of people on which the
measurements were taken. An axis label that reads “Mother Tongue (Number of
Canadian Residents)” would be much more informative.
Adding additional labels \index{plot!layers} to our visualizations that we create in altair is
one common and easy way to improve and refine our data visualizations. We can add titles for the axes
in the altair objects using alt.X and alt.Y with the title argument to make
the axes titles more informative.
\index{plot!axis labels} Again, since we are specifying
words (e.g. "Mother Tongue (Number of Canadian Residents)") as arguments to
alt.X and alt.Y, we surround them with double quotation marks. We can do many other modifications
to format the plot further, and we will explore these in Chapter
@ref(viz).
barplot_mother_tongue = (
alt.Chart(ten_lang)
.mark_bar().encode(
x=alt.X('language', title='Language'),
y=alt.Y('mother_tongue', title='Mother Tongue (Number of Canadian Residents)')
))
Fig. 4 Bar plot of the ten Aboriginal languages most often reported by Canadian residents as their mother tongue with x and y labels. Note that this visualization is not done yet; there are still improvements to be made.¶
The result is shown in Fig. 4. This is already quite an improvement! Let’s tackle the next major issue with the visualization in Fig. 4: the vertical x axis labels, which are currently making it difficult to read the different language names. One solution is to rotate the plot such that the bars are horizontal rather than vertical. To accomplish this, we will swap the x and y coordinate axes:
barplot_mother_tongue_axis = (
alt.Chart(ten_lang)
.mark_bar().encode(
x=alt.X('mother_tongue', title='Mother Tongue (Number of Canadian Residents)'),
y=alt.Y('language', title='Language')
))
Fig. 5 Horizontal bar plot of the ten Aboriginal languages most often reported by Canadian residents as their mother tongue. There are no more serious issues with this visualization, but it could be refined further.¶
Another big step forward, as shown in Fig. 5! There
are no more serious issues with the visualization. Now comes time to refine
the visualization to make it even more well-suited to answering the question
we asked earlier in this chapter. For example, the visualization could be made more transparent by
organizing the bars according to the number of Canadian residents reporting
each language, rather than in alphabetical order. We can reorder the bars using
the sort \index{reorder} argument, which orders a variable (here language) based on the
values of the variable(mother_tongue) on the x-axis.
\newpage
ordered_barplot_mother_tongue = (
alt.Chart(ten_lang)
.mark_bar().encode(
x=alt.X('mother_tongue', title='Mother Tongue (Number of Canadian Residents)'),
y=alt.Y('language', sort='x', title='Language')
))
Fig. 6 Bar plot of the ten Aboriginal languages most often reported by Canadian residents as their mother tongue with bars reordered.¶
Fig. 6 provides a very clear and well-organized answer to our original question; we can see what the ten most often reported Aboriginal languages were, according to the 2016 Canadian census, and how many people speak each of them. For instance, we can see that the Aboriginal language most often reported was Cree n.o.s. with over 60,000 Canadian residents reporting it as their mother tongue.
Note: “n.o.s.” means “not otherwise specified”, so Cree n.o.s. refers to individuals who reported Cree as their mother tongue. In this data set, the Cree languages include the following categories: Cree n.o.s., Swampy Cree, Plains Cree, Woods Cree, and a ‘Cree not included elsewhere’ category (which includes Moose Cree, Northern East Cree and Southern East Cree) [@language2016].
Putting it all together¶
In the block of code below, we put everything from this chapter together, with a few
modifications. In particular, we have actually skipped the
loc[] step that we did above; since you specify the variable names to plot
in the altair function, you don’t actually need to select the columns in advance
when creating a visualization. We have also provided comments next to
many of the lines of code below using the
hash symbol #. When Python sees a # sign, \index{comment} \index{aaacommentsymb@#|see{comment}} it
will ignore all of the text that
comes after the symbol on that line. So you can use comments to explain lines
of code for others, and perhaps more importantly, your future self!
It’s good practice to get in the habit of
commenting your code to improve its readability.
This exercise demonstrates the power of Python. In relatively few lines of code, we
performed an entire data science workflow with a highly effective data
visualization! We asked a question, loaded the data into Python, wrangled the data
(using df[], sort_values() and iloc[]) and created a data visualization to
help answer our question. In this chapter, you got a quick taste of the data
science workflow; continue on with the next few chapters to learn each of
these steps in much more detail!
# load the data set
can_lang = pd.read_csv("data/can_lang.csv")
# obtain the 10 most common Aboriginal languages
aboriginal_lang = can_lang[can_lang['category'] == 'Aboriginal languages']
arranged_lang = selected_lang.sort_values(['mother_tongue'], ascending=False)
ten_lang = arranged_lang[:10]
# create the visualization
ten_lang_plot = (alt.Chart(ten_lang)
.mark_bar().encode(
x = alt.X('mother_tongue', title="Mother Tongue (Number of Canadian Residents)"),
y = alt.Y('language', title="Language")))
Fig. 7 Bar plot of the ten Aboriginal languages most often reported by Canadian residents as their mother tongue¶
Accessing documentation¶
There are many Python functions in the pandas package (and beyond!), and
nobody can be expected to remember what every one of them does
or all of the arguments we have to give them. Fortunately, Python provides
the help function and __doc__ attrribute, which
\index{aaaquestionmark@?|see{documentation}}
\index{help|see{documentation}}
\index{documentation} provides an easy way to pull up the documentation for
most functions quickly. To use the help function to access documentation, you
just put the name of the function you are curious about as an argument inside the help function.
For example, if you had forgotten what the pd.read_csv function
did or exactly what arguments to pass in, you could run the following
code:
help(pd.read_csv)
To use the __doc__ attribute to access documentation, you
just put .__doc__ after the function you are curious about.
For example, to access the documentation of read_csv you could run the following code:
print(pd.read_csv.__doc__)
Fig. 8 shows the documentation that will pop up, including a high-level description of the function, its arguments, a description of each, and more. Note that you may find some of the text in the documentation a bit too technical right now Fear not: as you work through this book, many of these terms will be introduced to you, and slowly but surely you will become more adept at understanding and navigating documentation like that shown in Fig. 8. But do keep in mind that the documentation is not written to teach you about a function; it is just there as a reference to remind you about the different arguments and usage of functions that you have already learned about elsewhere.
Fig. 8 The documentation for the read_csv function including a high-level description, a list of arguments and their meanings, and more.¶
Exercises¶
Practice exercises for the material covered in this chapter can be found in the accompanying worksheets repository in the “R and the tidyverse” row. You can launch an interactive version of the worksheet in your browser by clicking the “launch binder” button. You can also preview a non-interactive version of the worksheet by clicking “view worksheet.” If you instead decide to download the worksheet and run it on your own machine, make sure to follow the instructions for computer setup found in Chapter @ref(move-to-your-own-machine). This will ensure that the automated feedback and guidance that the worksheets provide will function as intended.
